1/1 phase 110V/120V - 2KVA

Description

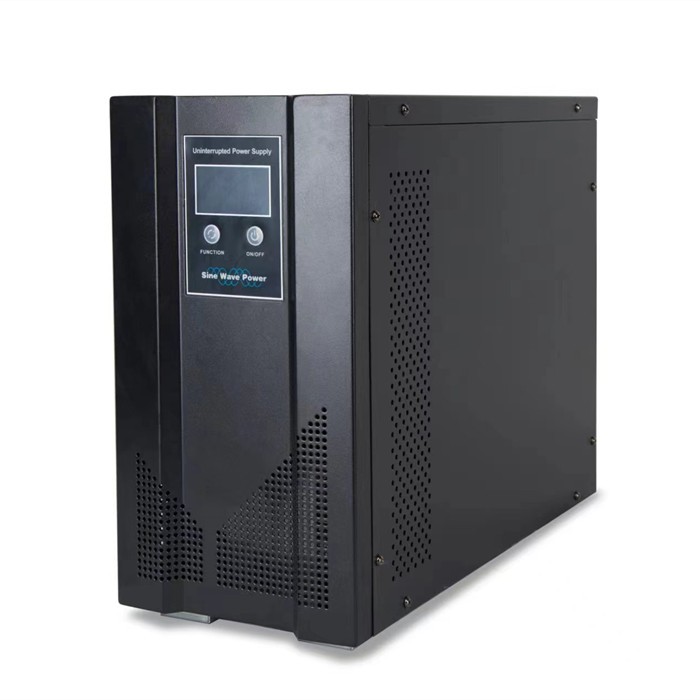

Model: Ekimp EK-T2KVA 1/1 True Online Double Conversion

Power rating: 2KVA/1.6KW

INPUT

· Voltage 110V/120V

· Input low/high voltage 90V-155V

· Frequency 46Hz-74Hz (adjustable)

· Power factor 0.99

BATTERY/CHARGER

· Battery type 4x 12V-7Ah, sealed lead acid

· Backup time 10 mins - 20 mins

OUTPUT

· Voltage 110V/120V (Fixed)Single phase

· Voltage stability ± 2%

· Power factor 0.8

· Voltage distortion ≤ 3% at linear load

· Transfer time 0 ms

· Frequency 60Hz ± 2%

· Output waveform Pure sinewave

· Overload @0.9pf load 125%-60secs, 135%-30secs, >135%-100msec (trf to bypass)

· Efficiency >92%

DISPLAY/INTERFACE

· LCD display AC/DC; KVA; Freq; Temp; Battery & load level

· LED status indicator Utility power; Battery discharge; Inverter On

· External comm. RS232

· Communication S/W Windows; Linux; Unix
