1/1phase 2U 110V/120V 1KVA

Description

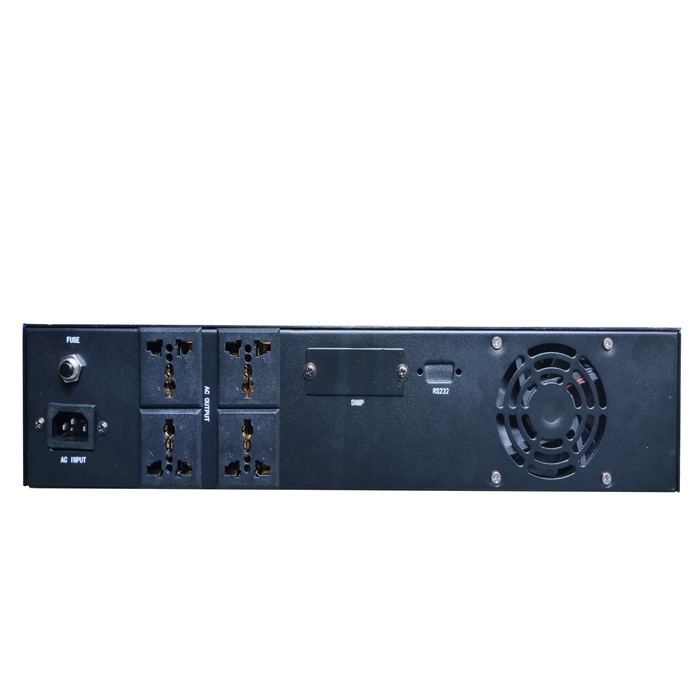

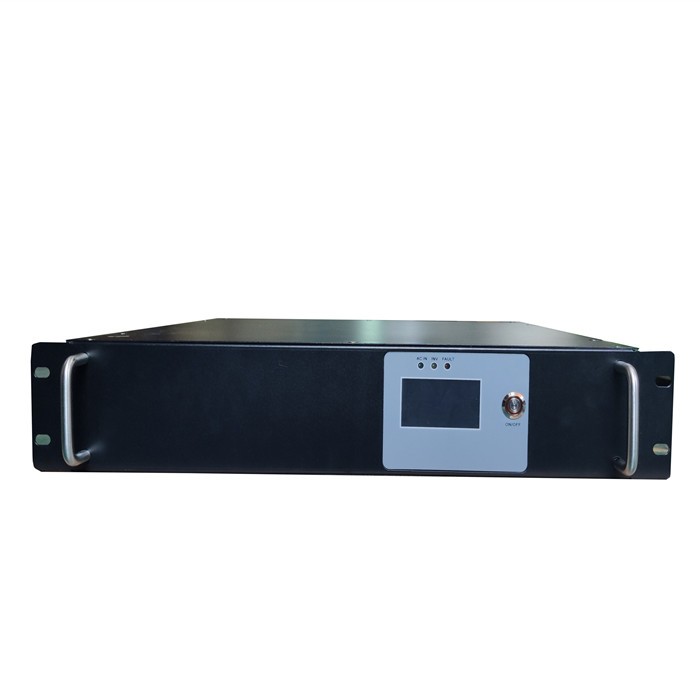

Model: Ekimp EK-R1KVA  Rack type 2U 1/1 True Online Double Conversion

Power rating: 1KVA/0.9KW

INPUT

· Voltage 110V/120V

· Input low/high voltage 90V-155V

· Frequency 46Hz-74Hz (adjustable)

· Power factor 0.99

BATTERY/CHARGER

· Battery type 2x 12V-7Ah, sealed lead acid

· Backup time 8 mins - 15 mins

OUTPUT

· Voltage 110V/120V (Fixed)Single phase

· Voltage stability ± 2%

· Power factor 0.9

· Voltage distortion ≤ 3% at linear load

· Transfer time 0 ms

· Frequency 60Hz ± 2%

· Output waveform Pure sinewave

· Overload @0.9pf load 125%-60secs, 135%-30secs, >135%-100msec (trf to bypass)

· Efficiency >92%

DISPLAY/INTERFACE

· LCD display AC/DC; KVA; Freq; Temp; Battery & load level

· LED status indicator Utility power; Battery discharge; Inverter On

· External comm. RS232

· Communication S/W Windows; Linux; Unix
