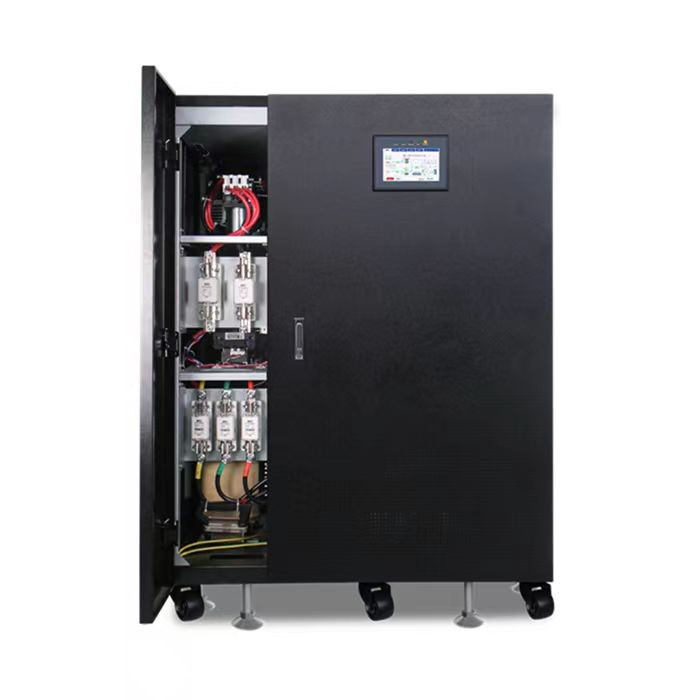

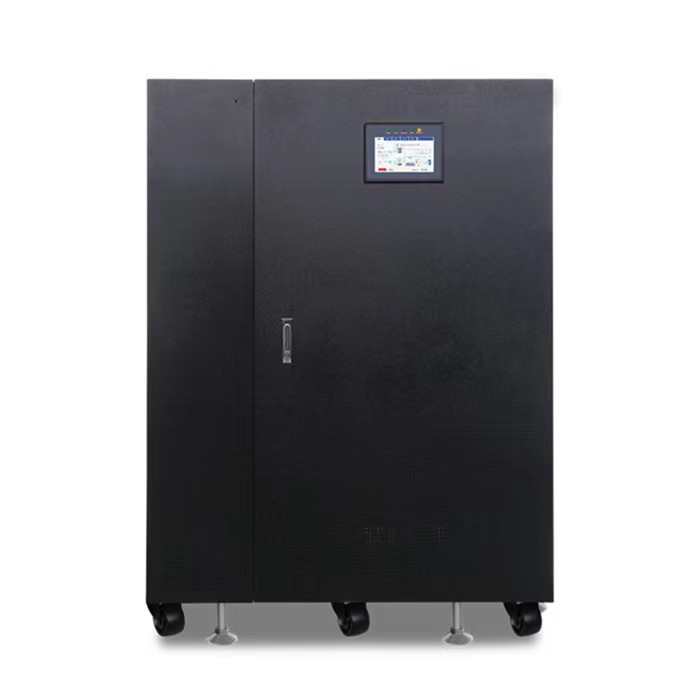

EK 100KVA 3/3 Industrial Frequency UPS

Description

Ekimp EK-100KVA 3/3 Telecommunications Industrial Frequency UPS

Power rated:100Kva/80Kw

INPUT

· Voltage 380Vac,3L+N+G,50Hz

· Input low/high voltage: 380Vac±25%

· Frequency50/60Hz±5Hz (Automatic identification)

· Power factor 0.99

BATTERY/CHARGER

· Battery type:External 32x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Backup time:As requested By owner

OUTPUT

· Voltage 380Vac,3L+N+G,50Hz

· Voltage stability 380Vac±1%

· Power factor 0.8

· Voltage distortion: linear load＜3%; nonlinear load＜8%

· Transfer time 0 ms

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· Overload 110% 300mins; 125% 125mins; /150%10mins

· Efficiency >92%

BYPASS

· Voltage 380Vac,3L+N+G,50Hz

· Voltage Range 380VAC±20% （10%15%20% (option)

· Frequency: 50/60Hz (Automatic identification)

· Frequency rated: 50/60Hz±20%（±1%to±5% adjustable）

DISPLAY/INTERFACE

· Touch Screen&LED

· Including the state of input, inverter, bypass and battery

· Communication Dry contact; RS232 Interface; Remote Control SNMP(option function)

· Parallel Operation Module, Harmonic Filter, Input Isolation Transformer, Intelligent Monitoring Software, SNMP
