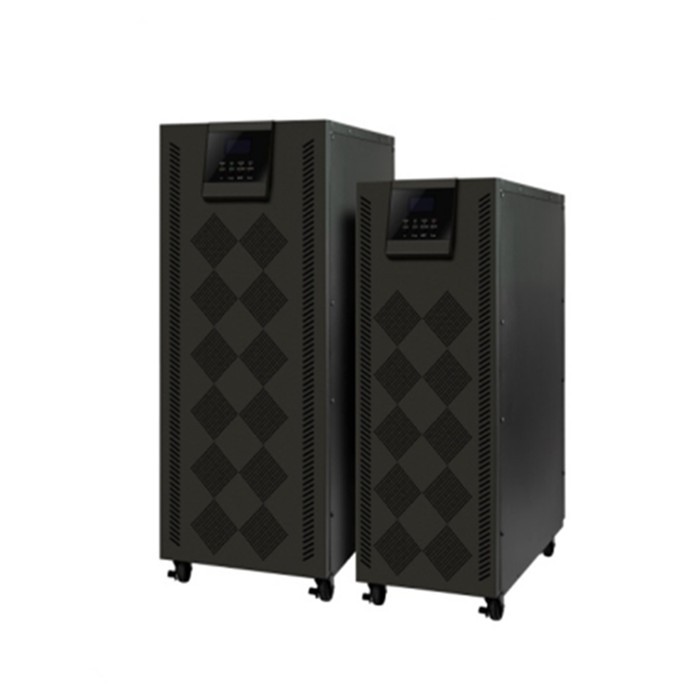

EK 3C3 15Kva 12KW industrial ups

Description

Model:Ekimp EK-3C3-15KVA 12Kw Industrial UPS

Power rated:15Kva/12Kw

INPUT

· Voltage 3 x 380/400V (3Ph + N)

· Input low/high voltage: 304V~456V (Ph-Ph)

· Frequency46Hz~54Hz @50Hz; 56Hz~64Hz @60Hz

· Power factor 0.99

BATTERY/CHARGER

· Battery type:External 32x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Backup time:As requested By owner

OUTPUT

· Voltage 380Vac,3 x 380/400V (3Ph + N)

· Voltage stability 380Vac±1%

· Power factor 0.8

· Voltage distortion: linear load＜3%; nonlinear load＜6%

· Transfer time 0 ms

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· Overload 110%~150% 10min~60s; >160% 200ms

· Efficiency >90%

BYPASS

· Voltage 3 x 380/400V (3Ph + N)

· Voltage Range  304V~456V (Ph-Ph)

· Frequency: 50Hz/60Hz

· Frequency rated: 46Hz~54Hz @50Hz; 56Hz~64Hz @60Hz

DISPLAY/INTERFACE

· Touch Screen&LED

· Including the state of input, inverter, bypass and battery

· Communication Dry contact; RS232 Interface; Remote Control SNMP(option function)

· Parallel Operation Module, Harmonic Filter, Input Isolation Transformer, Intelligent Monitoring Software, SNMP
