Model No:EK-33-20KL
Power:20Kva/18Kw
Input voltage:3Phase with neutral
Output voltage:3Phase with Neutral
Battery voltage:192VDC
Dimension:592x250x576mm
Unit price:USD1143
Description

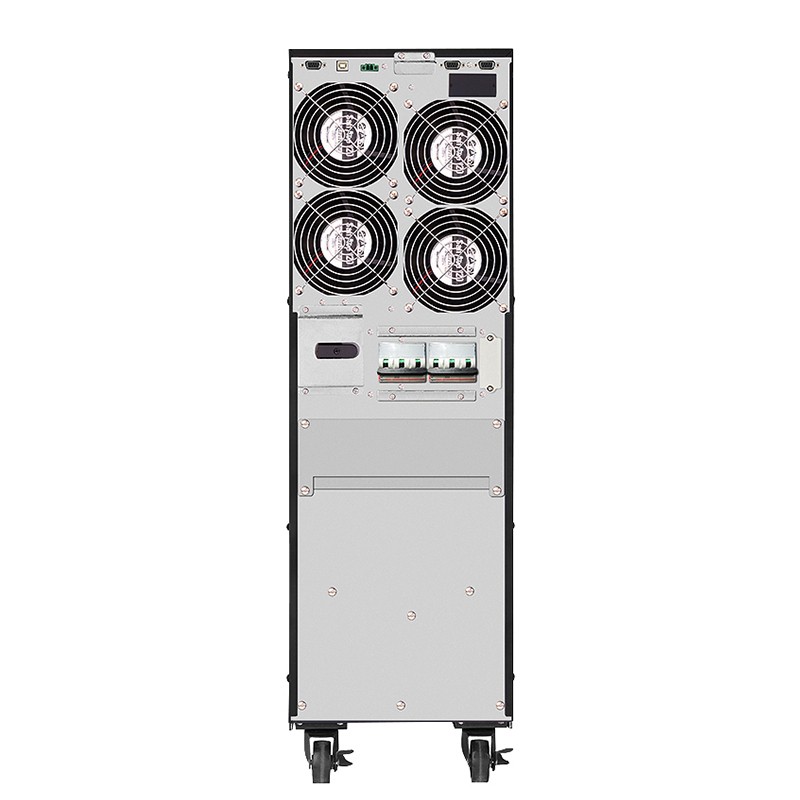

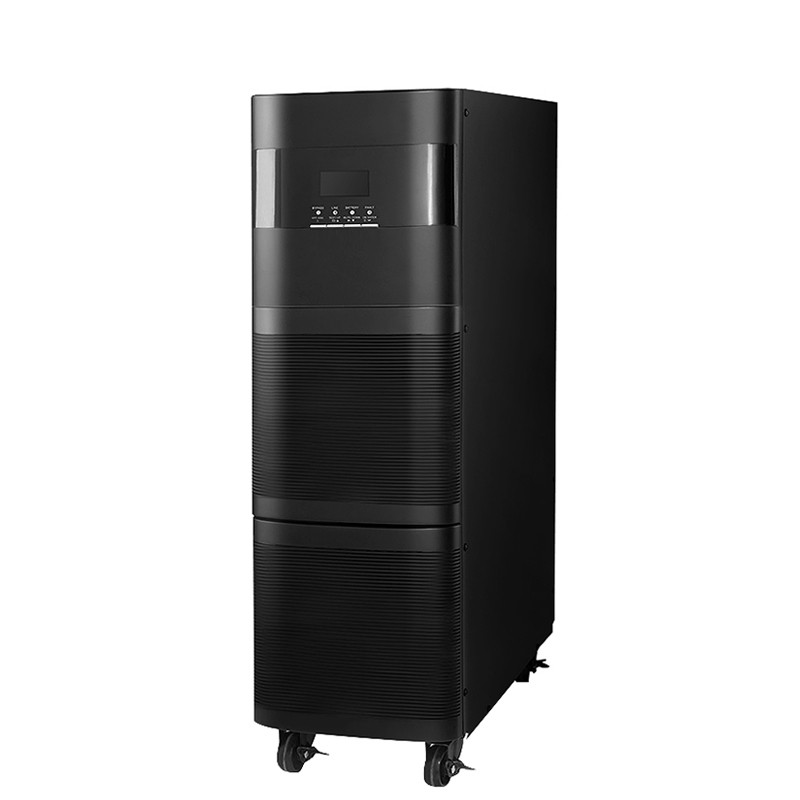

Ekimp EK-33-20KL 3/3 High frequency ture double conversion online ups power factor 0.9

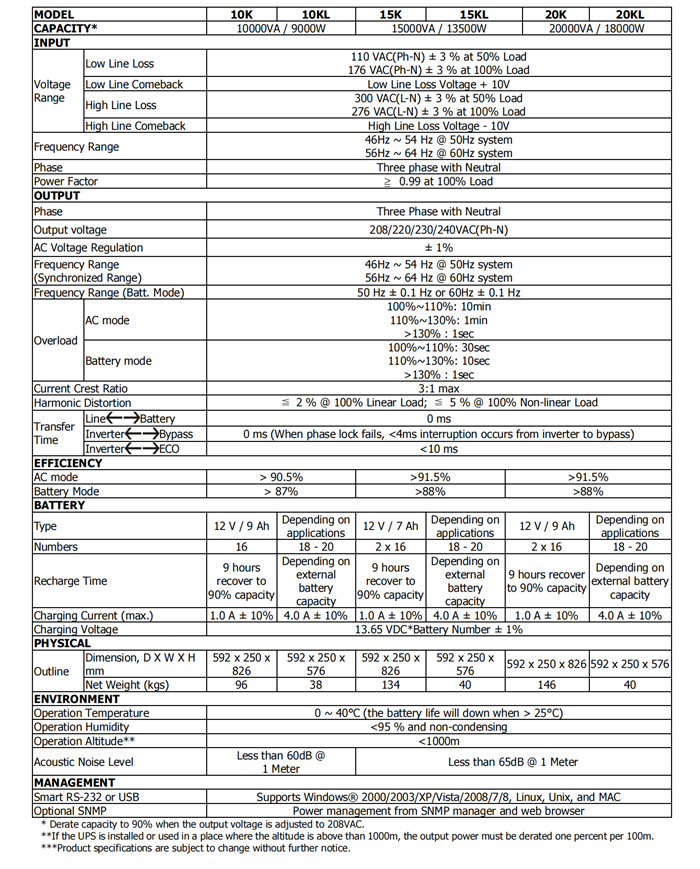

Power rated:20Kva/18Kw
INPUT
· Voltage 300Vac,3 phase with neutral
· Input low/high voltage: 300Vac±3%
· Frequency50/60Hz±5Hz (Automatic identification)
· Power factor 0.99
BATTERY/CHARGER
· Battery type:External 16x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery
· Backup time:As requested By owner
OUTPUT
· Voltage:208/220/230/240Vac,3phase with neutral
· Voltage stability 208/220/230/240Vac±1%
· Power factor 0.9
· Voltage distortion: linear load<2%; nonlinear load<5%
· Transfer time 0 ms
· Frequency: Input frequency automatic tracking
· Output waveform Pure sine wave
· AC mode Overload 110% 10mins; 125% 1mins; >130%1seconds
.Battery mode overlad 110% 1seconds; 125% 1seconds; >130%1seconds
· Efficiency >91.5%
