EK-6.2K-48V
MPPT 120A 6200W
Output range voltage:200/230/240VAC
PV range:90-450V
Output Factor:>0.99
Max Charging: 160A
Battery Voltage:48V
Battery type:Lithuim/acid lead/AGM
Smart lot:RS232/WIFI/Remove LCD/GPRS
Off &on Grid
Description

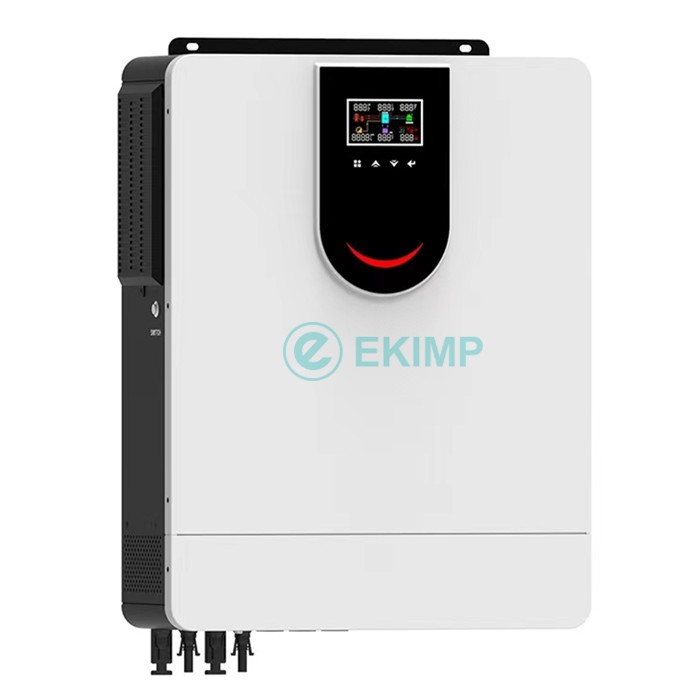

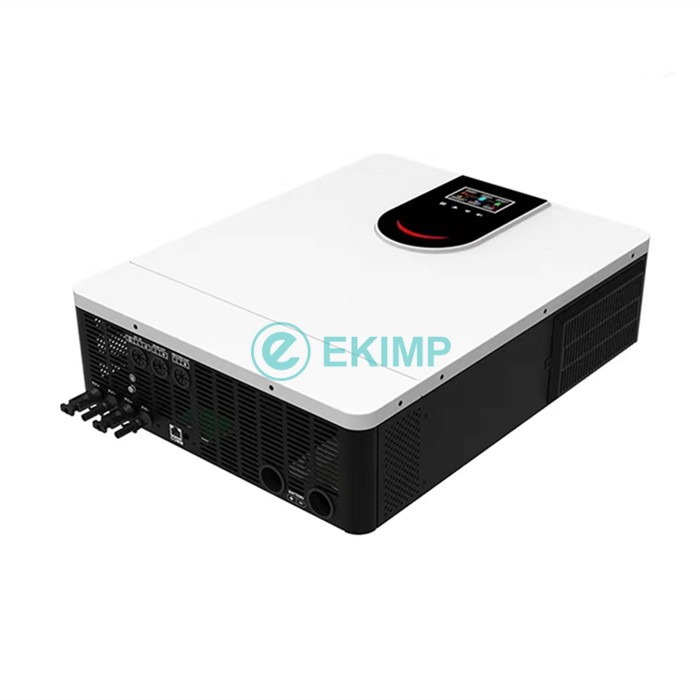

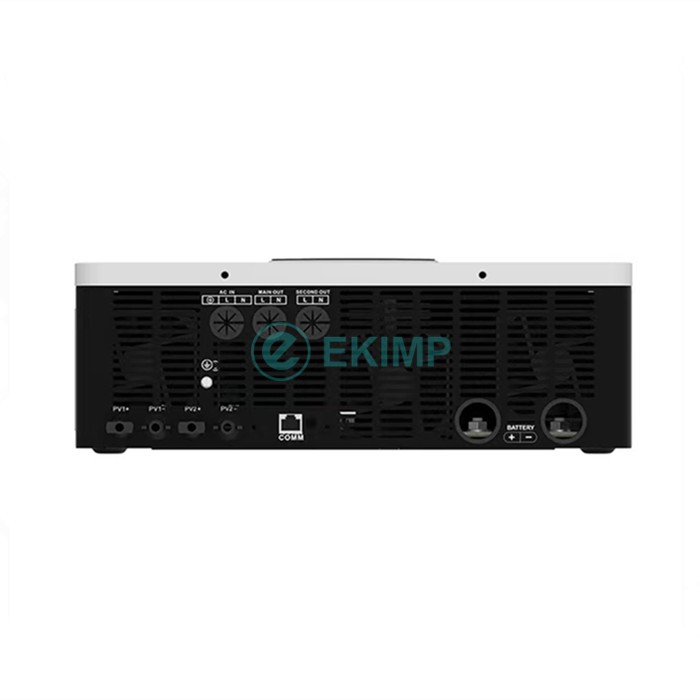

Ekimp EK-6.2K-48V 6200W Smart On&Off Grid built in 120A MPPT Solar Inverter household inverter
Power rated:6.2Kva/6200w
INPUT
· Voltage 230Vac,
· Input low/high voltage: 90-280Vac
· Frequency50/60Hz±5Hz (Automatic identification)
· Power factor 0.99
BATTERY/CHARGER
· Battery type:External 2x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery
· Max AC Charging current:120A
ON Grid OUTPUT
· Voltage 230Vac
· Voltage stability 230Vac±5%
· Power factor >0.99
· Frequency: Input frequency automatic tracking
· Output waveform Pure sine wave
· Efficiency Peak PV to Inverter :98%
Off Grid OUTPUT
· Voltage 230Vac
· Voltage stability 230Vac±5%
· Power factor >0.99
· Frequency: Input frequency automatic tracking
· Output waveform Pure sine wave
· Surge power: 12400W
· Efficiency Peak PV to Inverter :94%
SOLAR CHARGER
· Max PV array power:6500W
· Operate Voltage Range of MPPT:90-450V DC
· Max PV array open circuit Voltage:450VDC
· Max Solar charge Current:120A
ADVENTAGE FEATURE
· Pure sina wave solar inverter
· Built in MPPT120A
· Wifi&GPRS available for IOS and android(External hardware)
·Smart battery Charge design
· High PV input voltage range
· Built in anti dust kit for harsh enviroment
· Solar energy is provided directly to the load first
