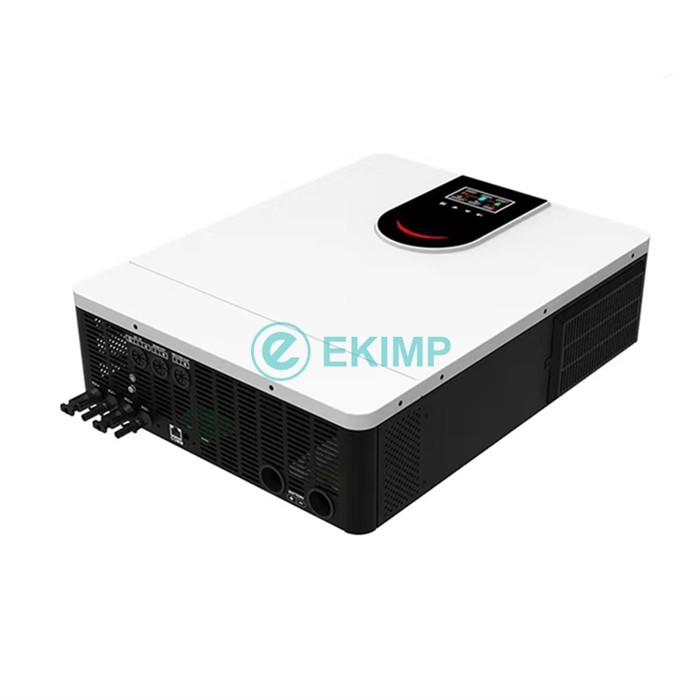

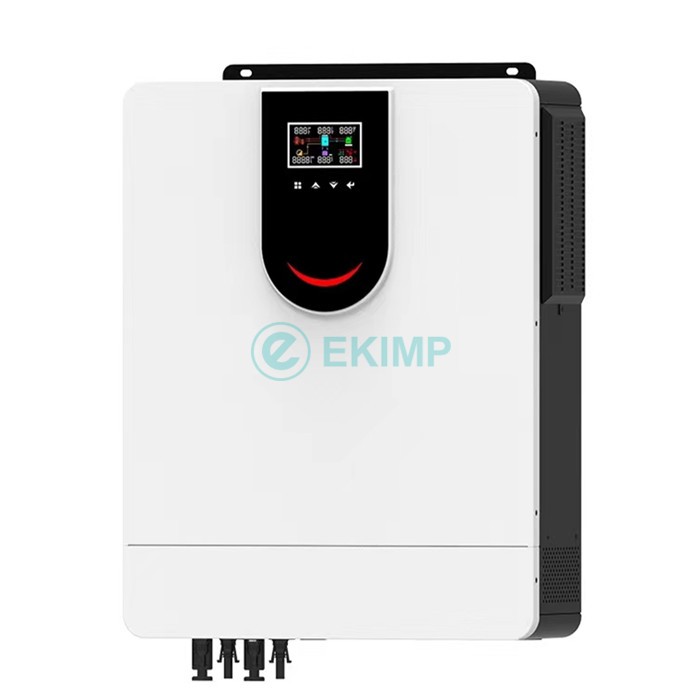

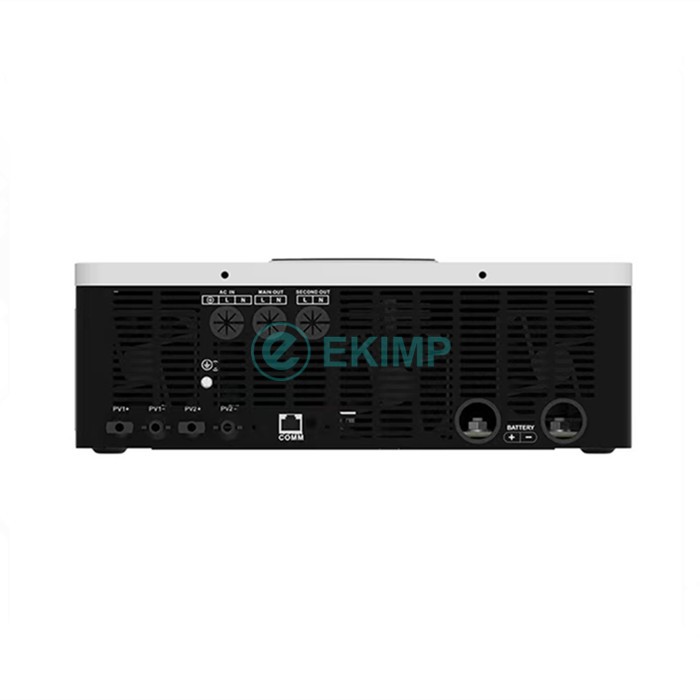

EK 4.2Kva on and off grid hybird inverter

Description

Ekimp EK-4.2K-24V 4200W Smart On&Off Grid built in 120A MPPT Solar Inverter Compatible Lithuim battery power factory more than 0.99

Power rated:4.2Kva/4200w

INPUT

· Voltage 230Vac,

· Input low/high voltage: 90-280Vac

· Frequency50/60Hz±5Hz (Automatic identification)

· Power factor 0.99

BATTERY/CHARGER

· Battery type:External 2x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Max AC  Charging current:120A

ON Grid OUTPUT

· Voltage 230Vac

· Voltage stability 230Vac±5%

· Power factor >0.99

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· Efficiency Peak PV to Inverter :98%

Off Grid OUTPUT

· Voltage 230Vac

· Voltage stability 230Vac±5%

· Power factor >0.99

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· Surge power: 8400W

· Efficiency Peak PV to Inverter :94%

SOLAR CHARGER

· Max PV array power:6400W

· Operate Voltage Range of MPPT:60-450V DC

· Max PV array open circuit Voltage:450VDC

· Max Solar charge Current:120A

ADVENTAGE FEATURE

· Pure sina wave solar inverter

· Built in MPPT120A

· Wifi&GPRS available for IOS and android(External hardware)

·Smart battery Charge design

· High PV input voltage range

· Built in anti dust kit for harsh enviroment

· Solar energy is provided directly to the load first
