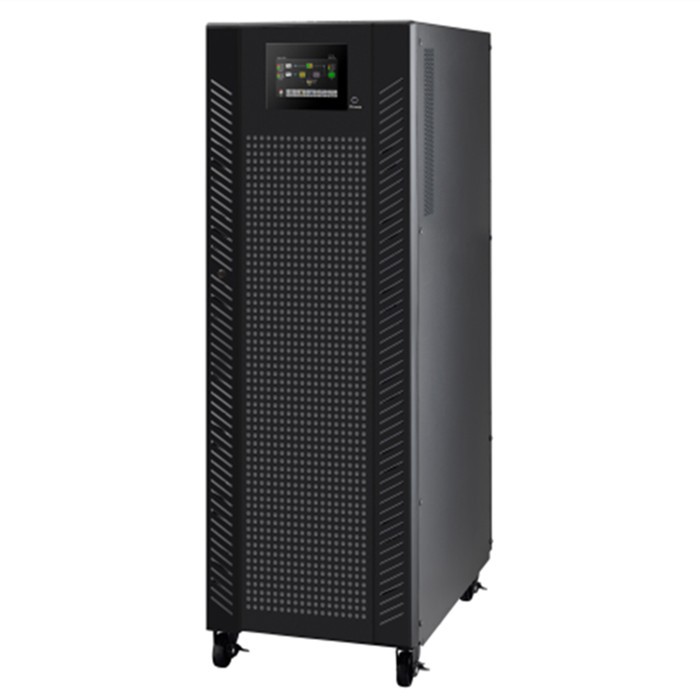

3/3 50KVa 40KW online UPS

Description

Ekimp EK-33-50KL 3/3 High frequency ture double conversion online 50Kva 40Kw ups Double input

commercial center backup power system

Power rated:50Kva/40Kw

Double INPUT

· Voltage 300Vac,3 phase with neutral

· Input low/high voltage: 300Vac±3%

· Frequency50/60Hz±5Hz (Automatic identification)

· Power factor 0.99

BATTERY/CHARGER

· Battery type:External (32~40pcs adjust)x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Backup time:As requested By owner

OUTPUT

· Voltage:208/220/230/240Vac,3phase with neutral

· Voltage stability 208/220/230/240Vac±1%

· Power factor 0.8

· Voltage distortion: linear load＜2%; nonlinear load＜5%

· Transfer time 0 ms

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· AC mode Overload 110% 10mins; 125% 1mins; >130%1seconds

.Battery mode overlad 110% 1seconds; 125% 1seconds; >130%1seconds

· Efficiency >93%
