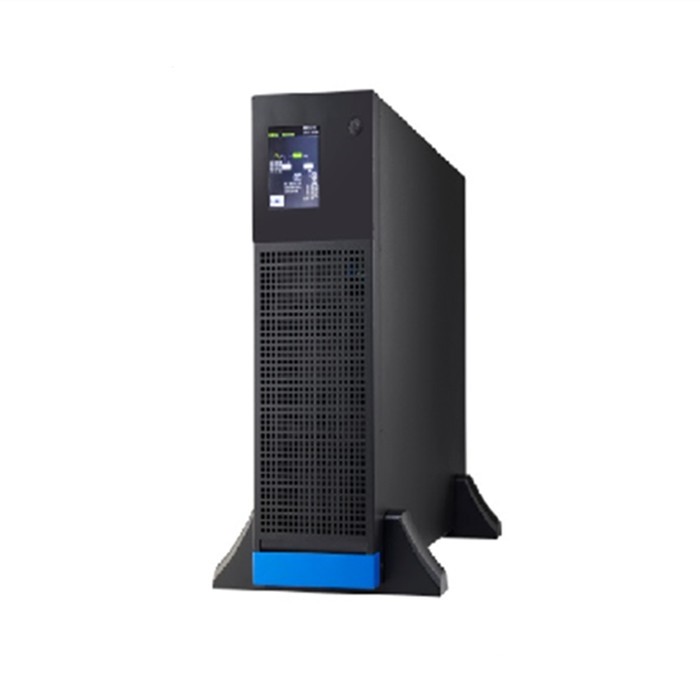

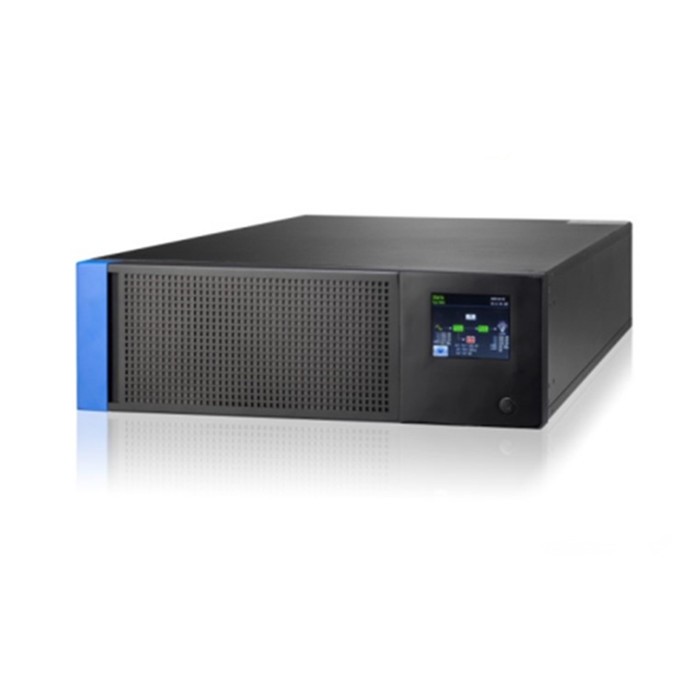

3/3 10KVa 10KW Rackmount online UPS

Description

Ekimp EK-33-10KLR 3/3 High frequency ture double conversion online 10Kva 10Kw ups Double input

commercial center backup power system

Power rated:10Kva/10Kw

Double INPUT

· Low Voltage: 110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load

· High Voltage: 300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load

· Frequency:46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system

· Power factor >=0.99

BATTERY/CHARGER

· Battery type:External (10+10pcs adjust)x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Backup time:As requested By owner

OUTPUT

· Voltage:360/380/400/415VAC (Ph-Ph);208*/220/230/240VAC (Ph-N);3phase with neutral

· Power factor 1

· Voltage distortion: linear load＜2%; nonlinear load＜5%

· Transfer time 0 ms

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· AC mode: 100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : 400ms

.Battery mode: 100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : 400ms

· Efficiency AC mode >95.5%. Battery mode>94.5%
