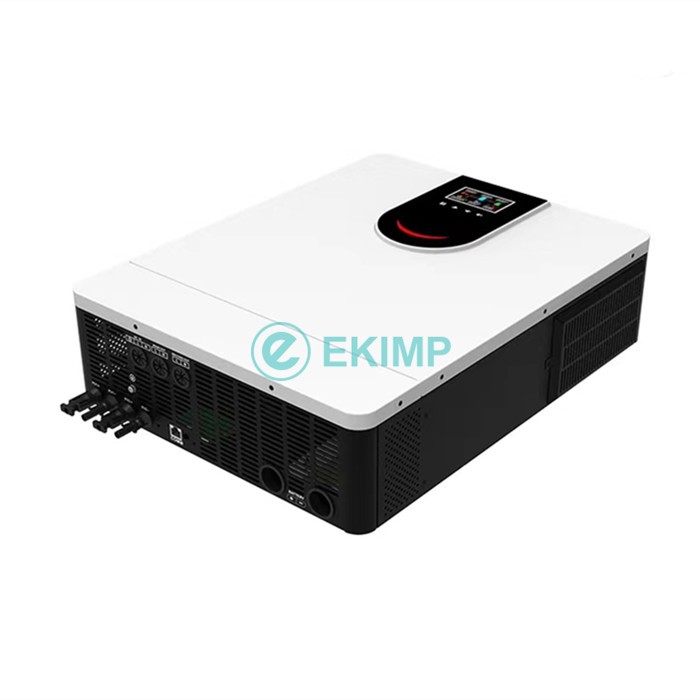

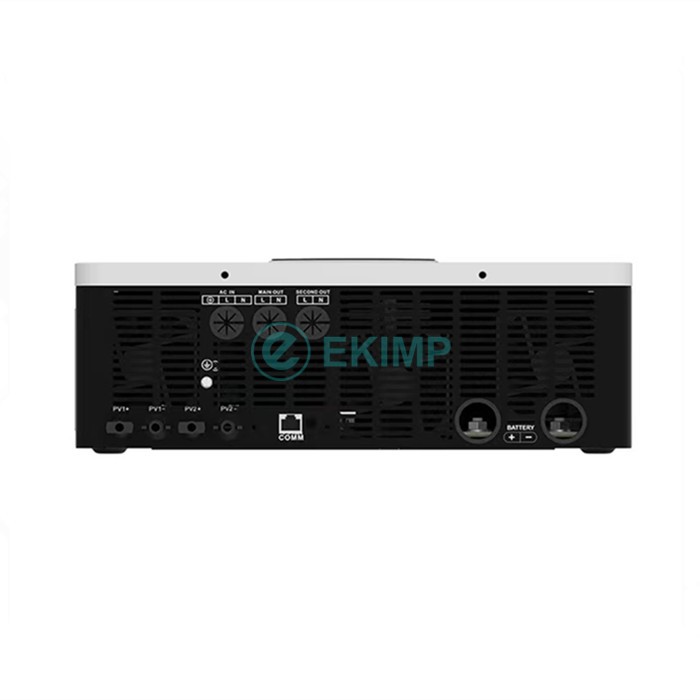

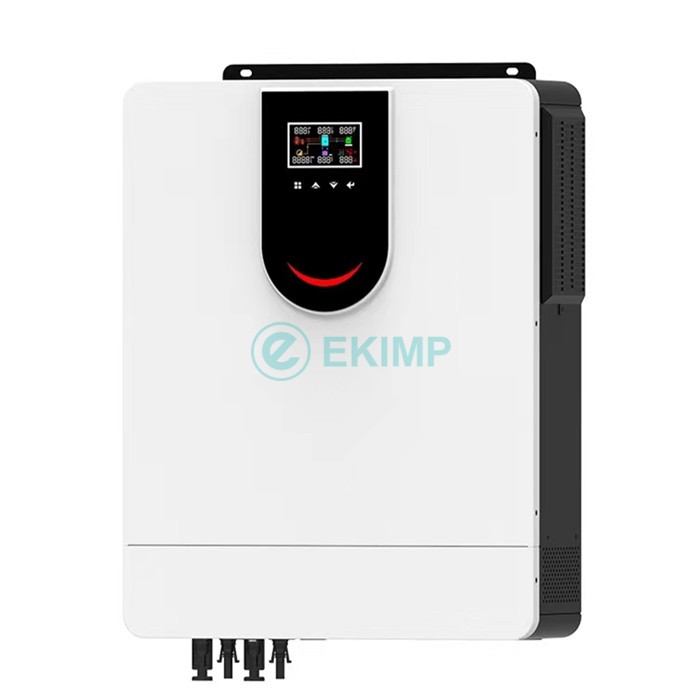

EK 3.2Kva 24V 3000W Solar Inverter

Description

Ekimp EK-3.2K-24V 3000W Smart Off Grid built in 80A MPPT Solar Inverter Compatible Lithuim battery power factory more than 0.9

Power rated:3.2Kva/3000w

INPUT

· Voltage 230Vac,

· Input low/high voltage: 90-280Vac

· Frequency50/60Hz±5Hz (Automatic identification)

· Power factor 0.99

BATTERY/CHARGER

· Battery type:External 2x 12V-XAH,Lead-acid battery, Gel battery,2V Battery,Lithium battery

· Max AC  Charging current:60A

OUTPUT

· Voltage 230Vac

· Voltage stability 230Vac±5%

· Power factor >0.9

· Transfer time:10ms (for personal computer);20ms (for home application)

· Frequency: Input frequency automatic tracking

· Output waveform Pure sine wave

· Surge power: 6400Va

· Efficiency Peak PV to Inverter :98%

SOLAR CHARGER

· Max PV array power:3000W

· Operate Voltage Range of MPPT:30-400V DC

· Max PV array open circuit Voltage:400VDC

· Max Solar charge Current:80A

ADVENTAGE FEATURE

· Pure sina wave solar inverter

· Built in MPPT80A

· Wifi&GPRS available for IOS and android(External hardware)

·Smart battery Charge design

· High PV input voltage range

· Built in anti dust kit for harsh enviroment

· Solar energy is provided directly to the load first
