Adjustable Output 220V 3KVA smart ups

Description

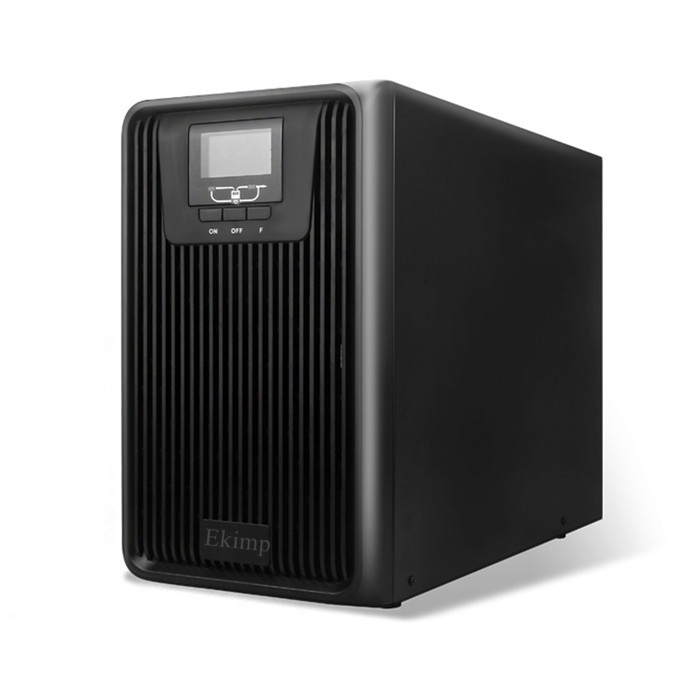

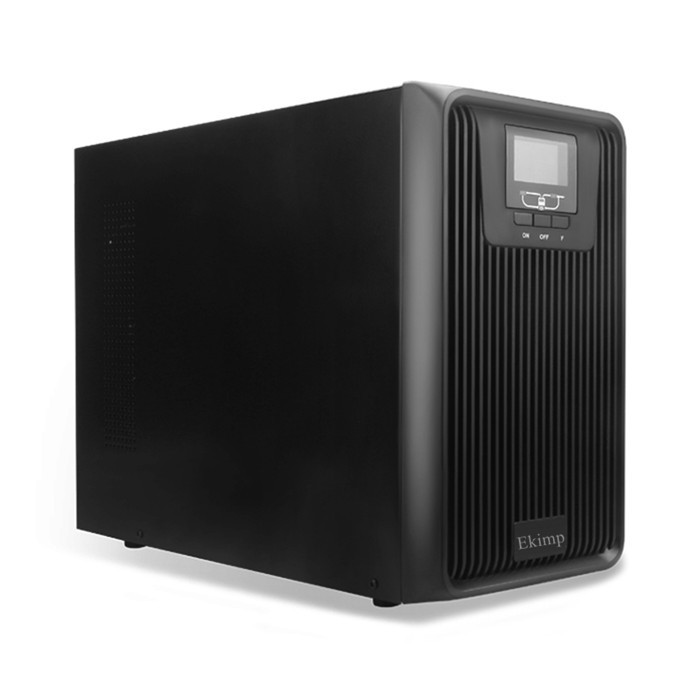

Model: Ekimp EK-TA3KVA-220V 1/1 phase True Online Double Conversion medical machine UPS

Power rating: 3KVA/2.7KW

INPUT

· Voltage 220V/230V

· Input low/high voltage 90V-300V

· Frequency 46Hz-74Hz (adjustable)

· Power factor 0.99

BATTERY/CHARGER

· Battery type 8x 12V-7Ah, sealed lead acid

· Backup time 8 mins - 15 mins

OUTPUT

· Voltage 220V/230V Adjustable freely

· Voltage stability ± 2%

· Power factor 0.9

· Voltage distortion ≤ 3% at linear load

· Transfer time 0 ms

· Frequency 50Hz ± 2%

· Output waveform Pure sinewave

· Overload @0.9pf load 125%-60secs, 135%-30secs, >135%-100msec (trf to bypass)

· Efficiency >92%

DISPLAY/INTERFACE

· LCD display AC/DC; KVA; Freq; Temp; Battery & load level

· LED status indicator Utility power; Battery discharge; Inverter On

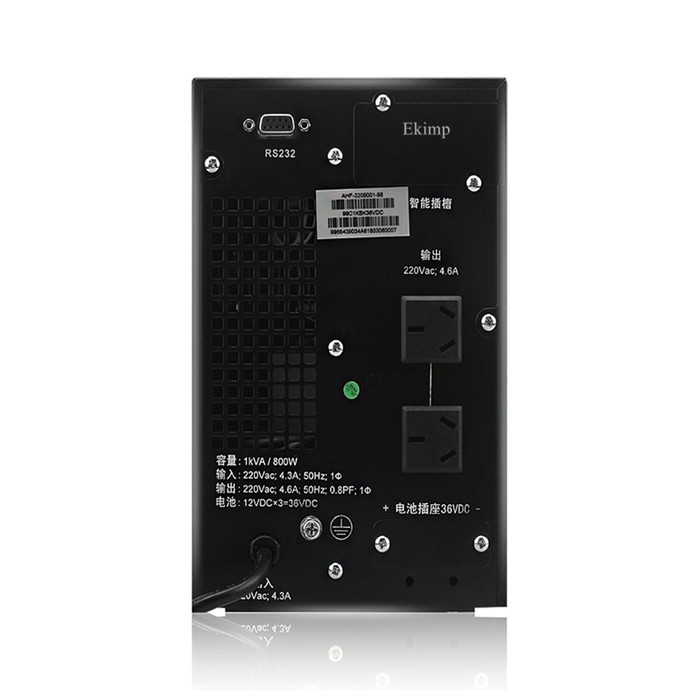

· External comm. RS232

· Communication S/W Windows; Linux; Unix
