Adjustable Output 220V 1KVA hospital ups

Model:EK-TA1KVA-220V
Input low/high voltage: 90V-300V
Frequency: 46Hz-74Hz (adjustable)
Output:Voltage 220/230V(Adjustable)
Battery type: 2x 12V-7Ah, sealed lead acid
Backup time: 8 mins - 15 mins
Application:Computer,Printer,Oxygen machine ,Operating light,MRI scan,CT scan etc

EMAIL

Description

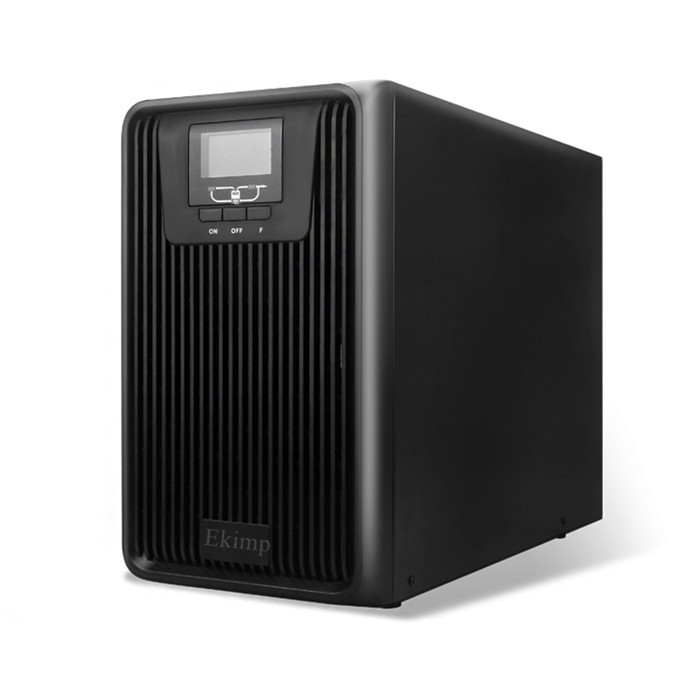

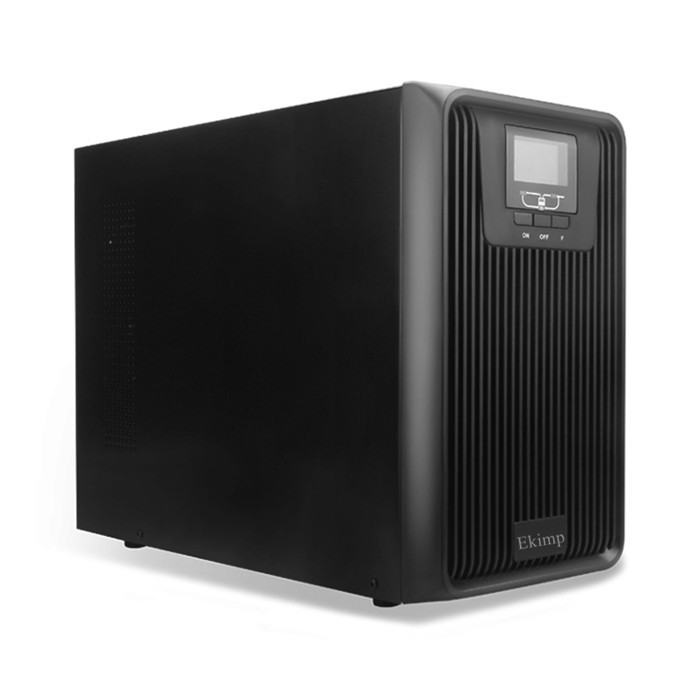

Model: Ekimp EK-TA1KVA-220V 1/1 120V True Online Double Conversion medical machine UPS

Power rating: 1KVA/0.9KW

INPUT

· Voltage 220V/230V

· Input low/high voltage 90V-300V

· Frequency 46Hz-74Hz (adjustable)

· Power factor 0.99

BATTERY/CHARGER

· Battery type 2x 12V-7Ah, sealed lead acid

· Backup time 8 mins - 15 mins

OUTPUT

· Voltage 220/230V Adjustable freely

· Voltage stability ± 2%

· Power factor 0.9

· Voltage distortion ≤ 3% at linear load

· Transfer time 0 ms

· Frequency 50Hz ± 2%

· Output waveform Pure sinewave

· Overload @0.9pf load 125%-60secs, 135%-30secs, >135%-100msec (trf to bypass)

· Efficiency >92%

DISPLAY/INTERFACE

· LCD display AC/DC; KVA; Freq; Temp; Battery & load level

· LED status indicator Utility power; Battery discharge; Inverter On

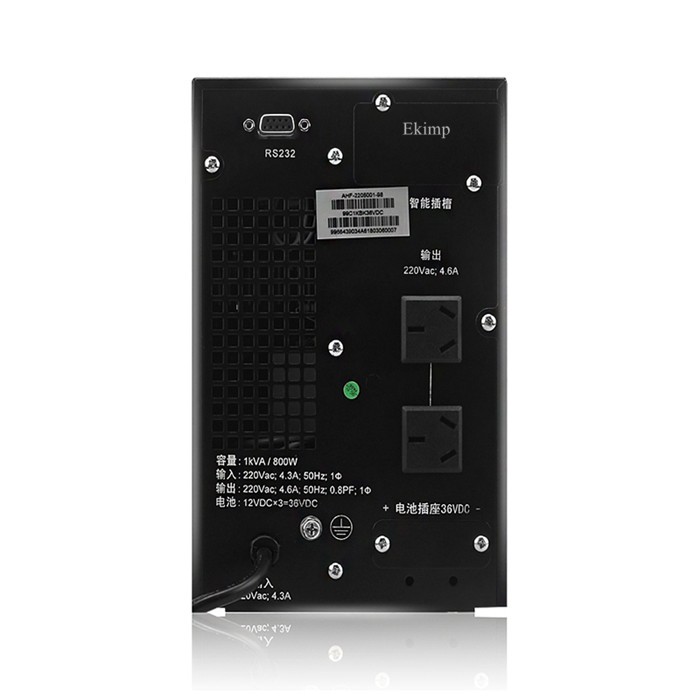

· External comm. RS232

· Communication S/W Windows; Linux; Unix
