1/1 phase 220 6KVA external battery UPS

Description

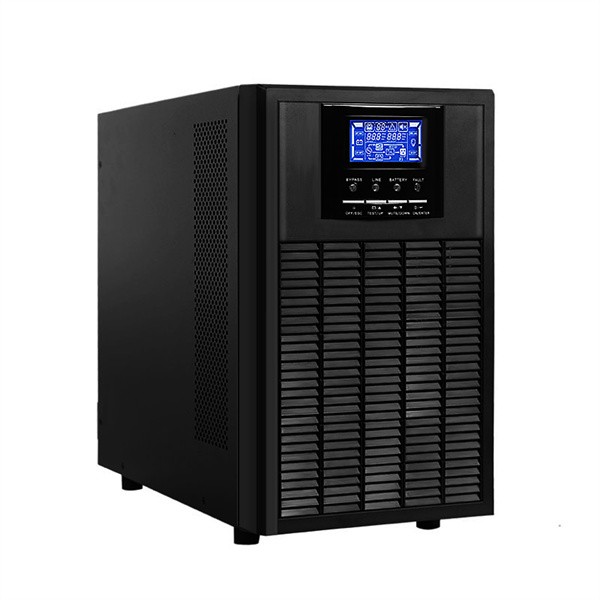

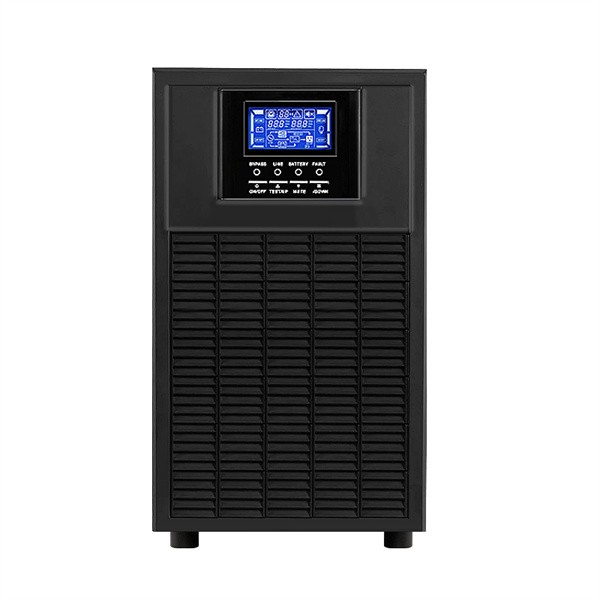

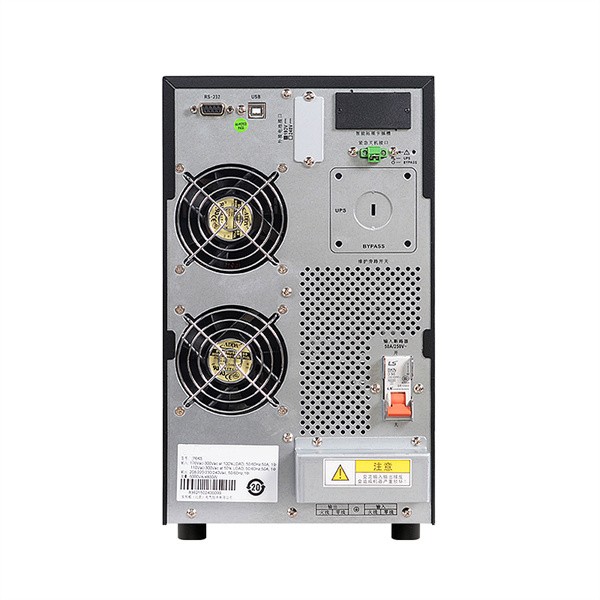

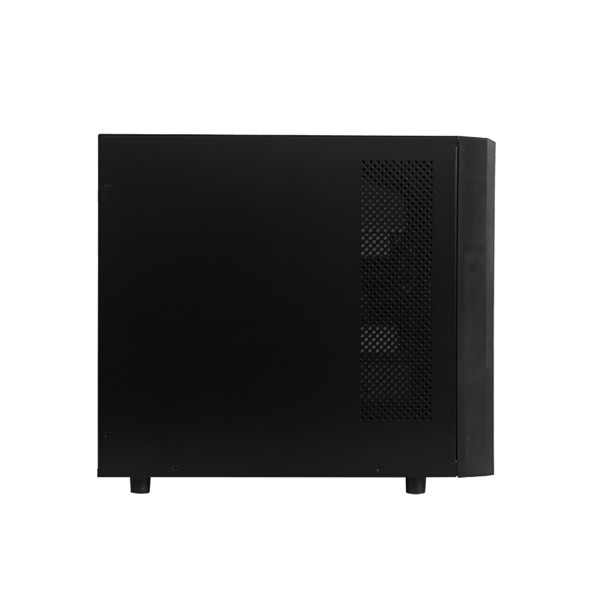

Model: Ekimp EK-T6KVA -220V 1/1 True Online Double Conversion external battery 3 D printer online ups

Power rating: 6KVA/4.8KW

INPUT

· Voltage 220V/230V

· Input low/high voltage 165V-300V

· Frequency 46Hz-74Hz (adjustable)

· Power factor 0.99

BATTERY/CHARGER

· Battery type 8x 12V-XXAh, sealed lead acid

· Backup time As requested(external battery)

OUTPUT

· Voltage 220V/230V (Fixed)Single phase

· Voltage stability ± 2%

· Power factor 0.8

· Voltage distortion ≤ 3% at linear load

· Transfer time 0 ms

· Frequency 50Hz ± 2%

· Output waveform Pure sinewave

· Overload @0.9pf load 125%-60secs, 135%-30secs, >135%-100msec (trf to bypass)

· Efficiency >92%

DISPLAY/INTERFACE

· LCD display AC/DC; KVA; Freq; Temp; Battery & load level

· LED status indicator Utility power; Battery discharge; Inverter On

· External comm. RS232

· Communication S/W Windows; Linux; Unix

Applications: Widely used in government, finance, communications,

Education, transportation, meteorology, radio and television, industrial and commercial taxation,

Various industries such as medical and health, energy and power.
