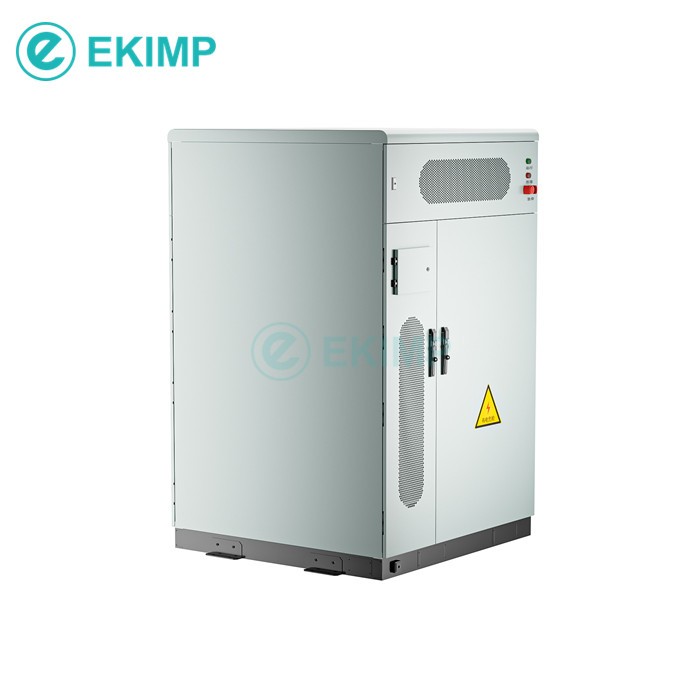

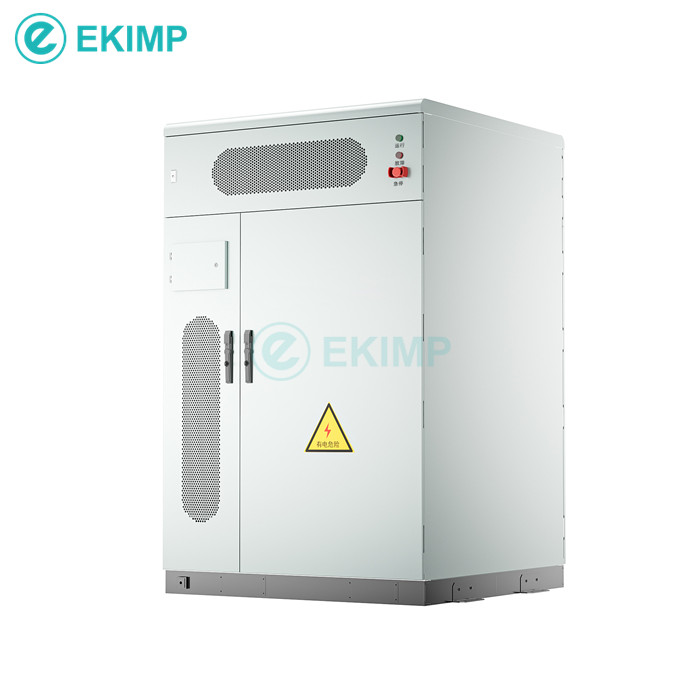

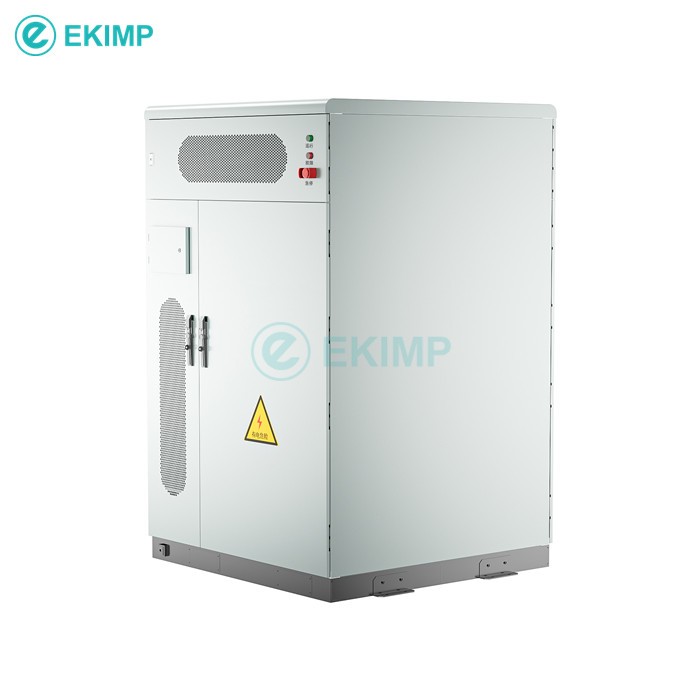

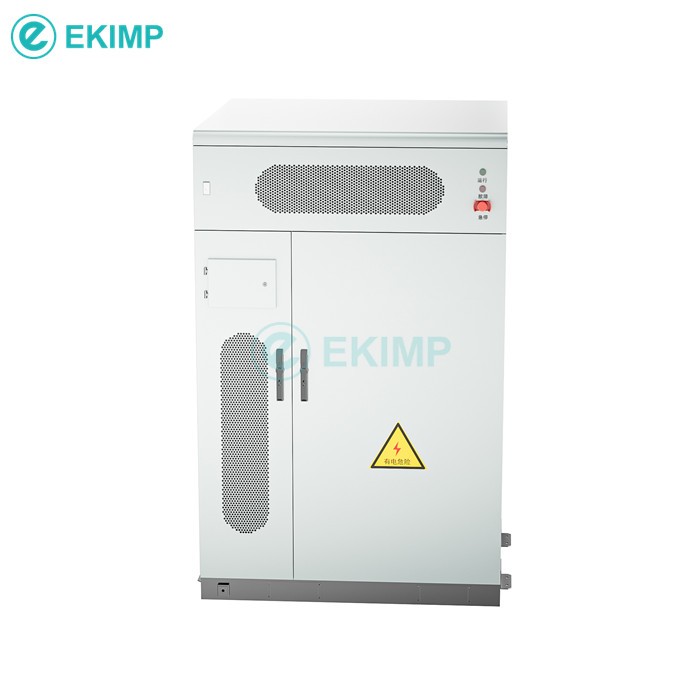

Ekimp 100Kw/232Kwh Liquid Cool

Ekimpower outdoor 100Kw232Kwh Liquid Cool energy stroage system cabinet

Model:EKCESS-100K232

Power rage:100Kw

Rated grid Voltage:AC400V

Freuqency:50/60hz

Capacity:232KWh

Battery specification:LFP280Ah

Rated battery voltage:768V

Voltage range:648V~864V

Configuration:MPPT(options),STS(options),PCS

Dimension：1376.5*1300*2050mm

Weight:3.2T

Communication port:Can/RS485

IEC/EN62619, IEC/EN60730, UN38.3, UN3480, IEC/EN62477, IEC/EN61000,  IEC/UL60730, GB/T36276
